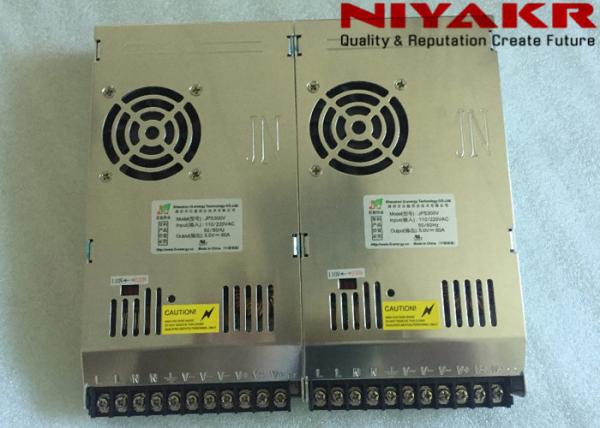

Original New Slim 5V 60A G-energy Switch Power Supply JPS300V For
LED Display
Output power: 300W
Max Leakage current: <1mA (Vin: 230)
Working temperature: -30 ° C ~ 50 ° C
Cooling method: air cooling
Storage temperature: -40~80°C
Input voltage: 110/220Vac (manual dialing), 47-63Hz
Insulation voltage: I/P-O/P: 3.0KVac; I/P-FG: 1.5KVac; O/P-FG:
0.5KVac
Safety standards: GB4943, EN60950 P
rotection function: input undervoltage, overload protection, short
circuit protection
Power factor: 0.50@230Vac
Size: length × width × height = 217mm × 117mm × 30mm
G-energy power supply:
slim thin design.
N200V5-A/N300V5-A/JPS300V/JPS400V
110V/220V,5V,40A.
110V/220V,5V,60A.
110V/220V,5V,80A.
| |
| |
| |
| Input (L N FG), output (V- V- V- V + V + V +) |
| |
| |
| |
| |
| |
| |
Adjustable Output Voltage Range | |
| |
Output Ripple and Noise (Vp-p) | |
| |
Output Overvoltage Protection | |
Output Overcurrent Protection | |
Output Short Circuit Protection | |
| |
| |
| |
| |
| |
| CE,ROHS,FCC,ISO9001,TUV UL |
|
| |
| |
| |
1.Ultra light &Slim
The LED power supply with high purity aluminum dhell,shell
thickness ratio power market 1mm.Materials more solid ,better heat
dissipation.But the entire power supply is thinner than the
traditional power supply 20mm.Weight is more slender only
0.57KG,less than the traditional power 10%,and convenient
trasportation .
2.Ultra high efficiency &Hign performance price ratio
Ultra thin power supply is more efficient than the traditional
power supply.The power supply capacity of the ultra -thin serise is
82%.Traditional power load capacity is 76%,6% higher than the
product quality assurance.The price is basically epuivalent to the
traditional power supply of the same parameters.
3.Intelligent installation &Wide temperature start
The ues of ultra thin serise power supply ,can work as usual in the
environment of -30 - 60 ºC ,while the traditional power supply of
the working environment is 20-50ºC,The application scope of
ultra-thin serise power supply is broader .High intelligent
installtion ,can choose two ends of the access output or one end
access output ,install more saves engineering cost .
