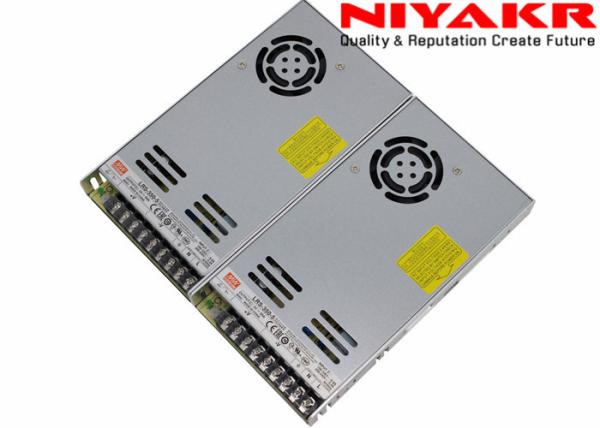

215×115×50mm Slim Original LRS 350 350W Meanwell Power Supply

    Buy cheap 215×115×50mm Slim Original LRS 350 350W Meanwell Power Supply from wholesalers

    Buy cheap 215×115×50mm Slim Original LRS 350 350W Meanwell Power Supply from wholesalers
    • Buy cheap 215×115×50mm Slim Original LRS 350 350W Meanwell Power Supply from wholesalers
    • Buy cheap 215×115×50mm Slim Original LRS 350 350W Meanwell Power Supply from wholesalers

    215×115×50mm Slim Original LRS 350 350W Meanwell Power Supply

    Ask Lasest Price
    Brand Name : MeanWell
    Model Number : LRS-350-5
    Certification : CE,ROHS,ISO,UL
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000 PCS Per Month
    Delivery Time : 1-5 working days
    • Product Details
    • Company Profile

    215×115×50mm Slim Original LRS 350 350W Meanwell Power Supply

    Stock 100% Original Taiwan LRS-350 Slim 350W Meanwell Power Supply

    100% Original LRS-350-5 Slim Meanwell Power Supply 5V For LED Display


    1. AC input range selectable by switch

    2. Protections: Short circuit / Overload / Over voltage / Over temperature

    3. 100% full load burn-in test

    4. Low cost, high reliability

    5. 36 months warranty



    Features:

    • AC input range selectable by switch

    • Withstand 300VAC surge input for 5 second

    • Protections: Short circuit / Overload / Over voltage / Over temperature

    • Cooling by free air convection

    • Forced air cooling by built-in DC fan
    • Miniature size and 1U low profile

    • Withstand 5G vibration test

    • LED indicator for power on

    • No load power consumption<0.75W

    • 100% full load burn-in test

    • High operating temperature up to 70°C

    • Operating altitude up to 5000 meters (Note.8)

    • High efficiency, long life and high reliability

      3 years warranty


    Specification:
    Model Number
    LRS-350-5
    Brand
    MEAN WELL
    Size
    215×115×50mm
    Wiring Instructions
    Input (L N FG), output (V- V- V- V + V + V +)
    AC Input Voltage Range
    90~132VAC/180~264VAC or 240~370VDC
    Input Rated Voltage
    110-220VAC
    Input Voltage Frequency
    47~63Hz
    Average Input Current
    6.8A/115VAC 3.4A/230VAC
    Overall Efficiency
    ≥83.5%
    Output Voltage
    5V
    Adjustable Output Voltage Range
    4.5~5.6V
    Output Rated Current
    0~60A
    Output Ripple and Noise (Vp-p)
    150mV
    Boot Time
    1S
    Output Overvoltage Protection
    5.75~6.75V
    Output Overcurrent Protection
    110~140%
    Output Short Circuit Protection
    No
    Working Temperature
    -25~70℃
    Storage Temperature
    -40~85℃
    Cooling Method
    Air Cooled
    MTBF
    ≥327.9K hours
    Weight
    0.76kg
    Certificate
    CE,ROHS,FCC,ISO9001,TUV
    Package
    Package (pcs/carton)
    10pcs
    Packing Size
    385*275*145
    G.W(Kg/carton)
    8kg

    Our service:

    Company System: we have been in LED industry for almost 10 years, focusing on the led display, and we have completed more than 2000 projects home and aboard,

    thus we are fully experienced to provide led display solutions. We are focusing and professional!


    R&D System: we have our R&D team with more than 7 years’ experience, and we will launch new products according to the customers ‘needs every year or even each quarter.


    Products System: there are indoor and outdoor fixed led display screen, indoor and outdoor rental led display, creative led display such as advertising led poster, soft led display and led curtain mesh, they are widely used for shopping mall, stage, events, conference room, church etc. meeting the demands of message display and delivery.


    Manufacturing System: we have strict QC control and manufacturing management process, which enable our products high quality and stable working performance.

    Service System:we have specialized technicians before and after sales. And strong marketing team to offer you the solutions 24 hours.


    FAQ

    Q1. Can I have a sample order firstly?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?

    A:Sample needs 1-2 days, mass production time needs 1-2 weeks for order quantity more than

    Q3. Do you have any MOQ limit ?

    A: Low MOQ, 1pc for sample checking is available

    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order ?

    A: Firstly let us know your requirements or application.

    Secondly We quote according to your requirements or our suggestions.

    Thirdly customer confirms the samples and places deposit for formal order.

    Fourthly We arrange the production.

    Q6: Do you offer guarantee for the products?

    A: Yes, we offer 2-7 years warranty to our products.
