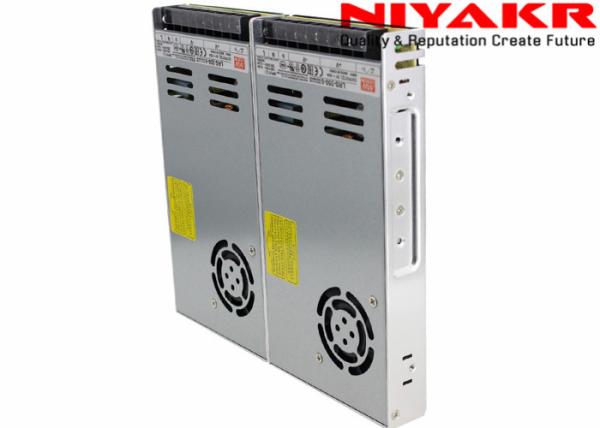

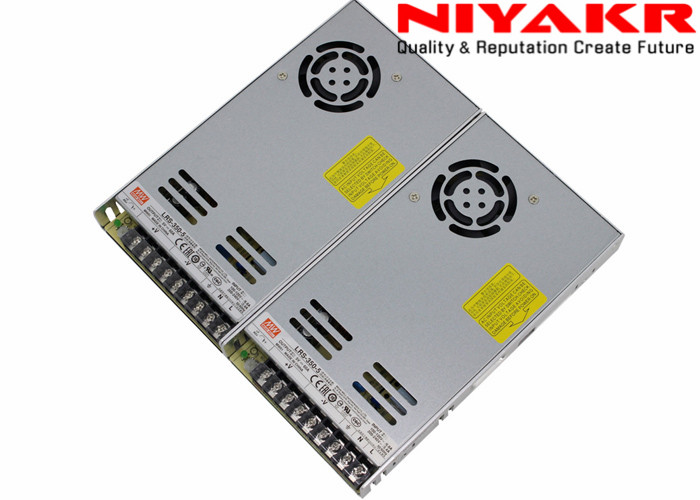

UL LRS 350 5 Slim 215*115*30mm Meanwell Power Supply 5V

    Buy cheap UL LRS 350 5 Slim 215*115*30mm Meanwell Power Supply 5V from wholesalers

    Buy cheap UL LRS 350 5 Slim 215*115*30mm Meanwell Power Supply 5V from wholesalers
    • Buy cheap UL LRS 350 5 Slim 215*115*30mm Meanwell Power Supply 5V from wholesalers
    • Buy cheap UL LRS 350 5 Slim 215*115*30mm Meanwell Power Supply 5V from wholesalers

    UL LRS 350 5 Slim 215*115*30mm Meanwell Power Supply 5V

    Ask Lasest Price
    Brand Name : MeanWell
    Model Number : LRS-350-5
    Certification : CE,ROHS,ISO,UL
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000 PCS Per Month
    Delivery Time : 1-5 working days
    • Product Details
    • Company Profile

    UL LRS 350 5 Slim 215*115*30mm Meanwell Power Supply 5V

    100% Original LRS-350-5 Slim Meanwell Power Supply 5V For LED Display


    Power supply Dimension Size:21.5*11.5*3cm

    Input Voltage:100-240V AC

    Package: 15 pcs/carton,12.4KG


    Specification:
    Model Number
    LRS-350-5
    Brand
    MEAN WELL
    Size
    215×115×50mm
    Wiring Instructions
    Input (L N FG), output (V- V- V- V + V + V +)
    AC Input Voltage Range
    90~132VAC/180~264VAC or 240~370VDC
    Input Rated Voltage
    110-220VAC
    Input Voltage Frequency
    47~63Hz
    Average Input Current
    6.8A/115VAC 3.4A/230VAC
    Overall Efficiency
    ≥83.5%
    Output Voltage
    5V
    Adjustable Output Voltage Range
    4.5~5.6V
    Output Rated Current
    0~60A
    Output Ripple and Noise (Vp-p)
    150mV
    Boot Time
    1S
    Output Overvoltage Protection
    5.75~6.75V
    Output Overcurrent Protection
    110~140%
    Output Short Circuit Protection
    No
    Working Temperature
    -25~70℃
    Storage Temperature
    -40~85℃
    Cooling Method
    Air Cooled
    MTBF
    ≥327.9K hours
    Weight
    0.76kg
    Certificate
    CE,ROHS,FCC,ISO9001,TUV
    Package
    Package (pcs/carton)
    10pcs
    Packing Size
    385*275*145
    G.W(Kg/carton)
    8kg

    Features:

    • AC input range selectable by switch

    • Withstand 300VAC surge input for 5 second

    • Protections: Short circuit / Overload / Over voltage / Over temperature

    • Cooling by free air convection

    • Forced air cooling by built-in DC fan
    • Miniature size and 1U low profile

    • Withstand 5G vibration test

    • LED indicator for power on

    • No load power consumption<0.75W

    • 100% full load burn-in test

    • High operating temperature up to 70°C

    • Operating altitude up to 5000 meters (Note.8)

    • High efficiency, long life and high reliability

      3 years warranty


    1.Ultra light &Slim
    The LED power supply with high purity aluminum dhell,shell thickness ratio power market 1mm.Materials more solid ,better heat dissipation.But the entire power supply is thinner than the traditional power supply 20mm.Weight is more slender only 0.57KG,less than the traditional power 10%,and convenient trasportation
    2.Ultra high efficiency &Hign performance price ratio
    Ultra thin power supply is more efficient than the traditional power supply.The power supply capacity of the ultra -thin serise is 82%.Traditional power load capacity is 76%,6% higher than the product quality assurance.The price is basically epuivalent to the traditional power supply of the same parameters.
    3.Intelligent installation &Wide temperature start
    The ues of ultra thin serise power supply ,can work as usual in the environment of -30 - 60 ºC ,while the traditional power supply of the working environment is 20-50ºC,The application scope of ultra-thin serise power supply is broader .High intelligent installtion ,can choose two ends of the access output or one end access output ,install more saves engineering cost .


    Packaging Information

    Packaging Details:0.76KG/piece

    Size:215*115*30mm(L*W*H)

    Carton size:48*36*29cm
