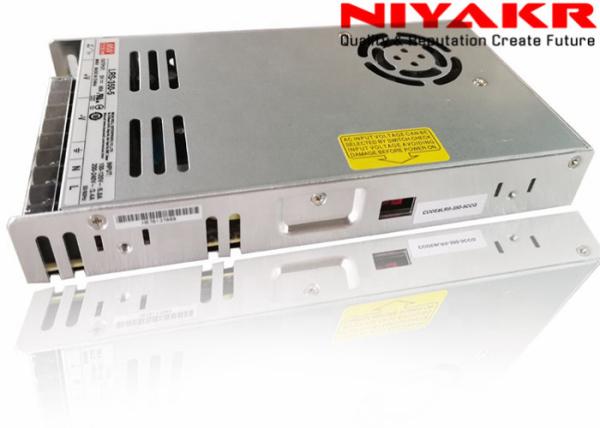

90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V

    Buy cheap 90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V from wholesalers

    Buy cheap 90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V from wholesalers
    • Buy cheap 90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V from wholesalers
    • Buy cheap 90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V from wholesalers

    90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V

    Ask Lasest Price
    Brand Name : MeanWell
    Model Number : LRS-350-5
    Certification : CE,ROHS,ISO,UL
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000 PCS Per Month
    Delivery Time : 1-5 working days
    • Product Details
    • Company Profile

    90VAC 132VAC LRS 350 5 Slim Led Switching Power Supply 5V

    100% Original LRS-350-5 Slim Switching Power Supply Meanwell 5V

    100% Original LRS-350-5 Slim Meanwell Power Supply 5V For LED Display


    1. The product parameters described may be incorrect. Please refer to the official website data or contact our customer service personnel first.
    2. Shipping terms is FOB China, you have to bear the tariffs caused in destination country.
    3. The item is USED (or Refurbished), don't measure it by new standards. There may be scratches on the surface of the product, but it doesn't affect your use. We’ll try our best to give you a best one.
    4.Usually motherboard without bios battery, post can't send,Express need add extra $5
    5. This product has 30 days warranty. (We suggest you install and check it within 7 days after you get the parcel. If any problem then we can help you in time.)
    6.There will be warranty label on this product. Without our permission, please don’t refit or disassemble the product. Once you did it or the warranty label is damaged, we won’t provide any warranty or refund.
    7. Please inspect the parcel before you sign it. Please refuse to sign if you aren’t satisfied with the item (such as brand, appearance, damage and so on). Once you sign the parcel that means you agree on the item’s condition (we’ll provide warranty if function problem). If damage is found after receipt of the goods, please provide a complete proof of damage issued by the unpacked video and logistics company. If you can’t provide proof of damage, you will not be able to get compensation.


    Features:

    • AC input range selectable by switch

    • Withstand 300VAC surge input for 5 second

    • Protections: Short circuit / Overload / Over voltage / Over temperature

    • Cooling by free air convection

    • Forced air cooling by built-in DC fan
    • Miniature size and 1U low profile

    • Withstand 5G vibration test

    • LED indicator for power on

    • No load power consumption<0.75W

    • 100% full load burn-in test

    • High operating temperature up to 70°C

    • Operating altitude up to 5000 meters (Note.8)

    • High efficiency, long life and high reliability

      3 years warranty


    Specification:
    Model Number
    LRS-350-5
    Brand
    MEAN WELL
    Size
    215×115×50mm
    Wiring Instructions
    Input (L N FG), output (V- V- V- V + V + V +)
    AC Input Voltage Range
    90~132VAC/180~264VAC or 240~370VDC
    Input Rated Voltage
    110-220VAC
    Input Voltage Frequency
    47~63Hz
    Average Input Current
    6.8A/115VAC 3.4A/230VAC
    Overall Efficiency
    ≥83.5%
    Output Voltage
    5V
    Adjustable Output Voltage Range
    4.5~5.6V
    Output Rated Current
    0~60A
    Output Ripple and Noise (Vp-p)
    150mV
    Boot Time
    1S
    Output Overvoltage Protection
    5.75~6.75V
    Output Overcurrent Protection
    110~140%
    Output Short Circuit Protection
    No
    Working Temperature
    -25~70℃
    Storage Temperature
    -40~85℃
    Cooling Method
    Air Cooled
    MTBF
    ≥327.9K hours
    Weight
    0.76kg
    Certificate
    CE,ROHS,FCC,ISO9001,TUV
    Package
    Package (pcs/carton)
    10pcs
    Packing Size
    385*275*145
    G.W(Kg/carton)
    8kg
