1R 1G 1B IP65 P10 SMD3535 Large Stadium LED Display

    Buy cheap 1R 1G 1B IP65 P10 SMD3535 Large Stadium LED Display from wholesalers

    Buy cheap 1R 1G 1B IP65 P10 SMD3535 Large Stadium LED Display from wholesalers
    • Buy cheap 1R 1G 1B IP65 P10 SMD3535 Large Stadium LED Display from wholesalers
    • Buy cheap 1R 1G 1B IP65 P10 SMD3535 Large Stadium LED Display from wholesalers

    1R 1G 1B IP65 P10 SMD3535 Large Stadium LED Display

    Ask Lasest Price
    Brand Name : NIYAKR
    Model Number : P10
    Certification : CE,ROHS,ISO,UL
    Price : USD
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 20000 square meters per month
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    1R 1G 1B IP65 P10 SMD3535 Large Stadium LED Display

    5 Years Warranty Large Baseball Stadium Perimeter Led Screen Display



    Specification

    Technical parametersParameters values
    Pixel pitch10mm
    Panel sizeL320mm×H160mm
    Physical density 10000dots/sqm
    Pixel configuration 1R,1G,1B
    Driving methodConstant current
    Scan mode1/2 scan
    LED EncapsulationSMD3535
    Display resolution 32dots×16dots=512dots
    Module weight0.4KG
    Module port HUB75
    Module working voltage DC5V
    Module consumption30W
    Cabinet size 960mm×960mm/can be customize
    Cabinet weight35kg
    Cabinet resolution96dots×96dots
    Viewing angle140°
    Option distance10m-50m
    Driving device16016
    Every square meter module19.53pcs
    Maximum power1250W/sqm
    Frame Frequency≥60HZ/S
    Refresh frequency 1920HZ/S
    Equilibrium brightness ≥7000CD/sqm
    Working environment temperature -10°C~+70°C
    Working environment humidity 10%~90%
    Display working voltage AC46~54HZ,220V±15%/110V±15%
    Color temperature 8500K-11500K
    Gray scale/color ≥16.7M color
    Input signal RF S-Video RGB etc
    Mean free error time >10000
    Life 100000
    Lamp failure frequency <0.0001
    IP rating The front IP65

    Features

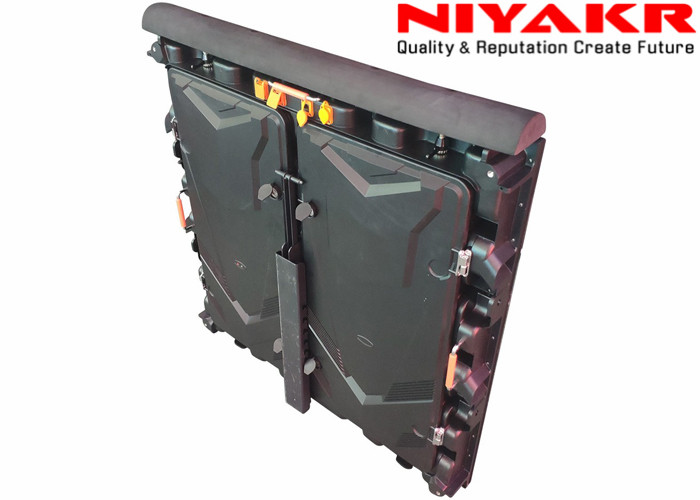

    Ultra-light and ultra-thin - the weight of the cabinet is 40% lighter than the traditional aluminum box, which greatly saves costs

    Fast heat dissipation---Good heat dissipation performance, effective protection of module circuit

    Anti-interference---Special anti-electromagnetic interference function

    High strength---The box tensile test reaches 300Kg, which is stronger than aluminum

    Quick installation - dedicated quick lock, installation takes only 20 seconds

    High precision---The box is processed by CNC, the precision is higher, and it can be seamlessly spliced

    High versatility - can be installed in any kit hole processing, indoor and outdoor can be used together

    Easy to maintain---module magnet front suction design, greatly reducing module replacement time

    Cost-effective - a complete production supply chain for large-scale production


    Application

    The Sport Perimeter LED Display is used for advertising around sports venues such as football fields and basketball courts.

    While enjoying the exciting games, the advertisement information is cyclically played.

    It is the perfect combination of modern sports and commercial management.

    The humanized design also protects the personal safety of athletes.


    Any interest or questions,contact us now!


    FAQ

    1.How can i place an order?

    Please provide the details of your requirement for Led screen, like:

    A.Indoor or outdoor Led screen you prefer?

    B.What’s the width and height ?

    C.Fixed or rental installation?

    Once receive your requirement ,will send you quotation, for further discussion, had better to contact with us in the e-mail , WhatsApp or skype.


    2.What kind of led display we provide?

    We can provide many types of led screen: for example: indoor Led screen,outdoor Led screen, fixed led screen, rental led screen, led poster, irregular Led screen ect.


    3.What about delivery time for the order?

    7~25 days, depends on the detailed requirements.


    4.How about the warranty?

    We have 2 years warranty and lifelong maintenance


    5.What is your terms of delivery?

    We accept EXW, FOB, CIF, CFR ,DDU. You can choose the one which is the most convenient or cost effective for you.
