P5 P6 P8 P10 Waterproof Football Stadium Perimeter Led Screen
Display
P5 P6 P8 P10 football stadium perimeter led screen display
Specification
| Specification | Outdoor | Outdoor | Outdoor | Outdoor |
| Pixel Pitch(mm) | P5 | P6 | P8 | P10 |
| LED Type | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Size(mm) | 160*160 | 192*192 | 320*160 | 320*160 |
| Scanning Mode | 8 | 4 | 4 | 2 |
| Optimum Viewing Angle | H;140°,V;120° |
|
| Brightness(cd/m2) | 5500-6000 | 6300-6500 | 6300-6500 | 6500-7000 |
| Grey Scale(bit) | 14bit |
| Refresh Rate(HZ) | 1920 |
| Power Consumption | 800/266 | 780/260 |
| (Max.Ave)(w/sqm) |
| Cabinet Resolution(PX) | 192*192 | 160*160 | 120*120 | 96*96 |
| Cabinet Size(mm) | 960*960 |
| Cabinet Weight(kg) | 42 |
| Protection Level | IP65 |
| Working Temperature(℃) | -40℃-65℃ |
| Operation Humidity(RH) | 10% - 90% |
Features
Ultra-light and ultra-thin - the weight of the cabinet is 40%
lighter than the traditional aluminum box, which greatly saves
costs
Fast heat dissipation---Good heat dissipation performance,
effective protection of module circuit
Anti-interference---Special anti-electromagnetic interference
function
High strength---The box tensile test reaches 300Kg, which is
stronger than aluminum
Quick installation - dedicated quick lock, installation takes only
20 seconds
High precision---The box is processed by CNC, the precision is
higher, and it can be seamlessly spliced
High versatility - can be installed in any kit hole processing,
indoor and outdoor can be used together
Easy to maintain---module magnet front suction design, greatly
reducing module replacement time
Cost-effective - a complete production supply chain for large-scale
production
First, the unique structure

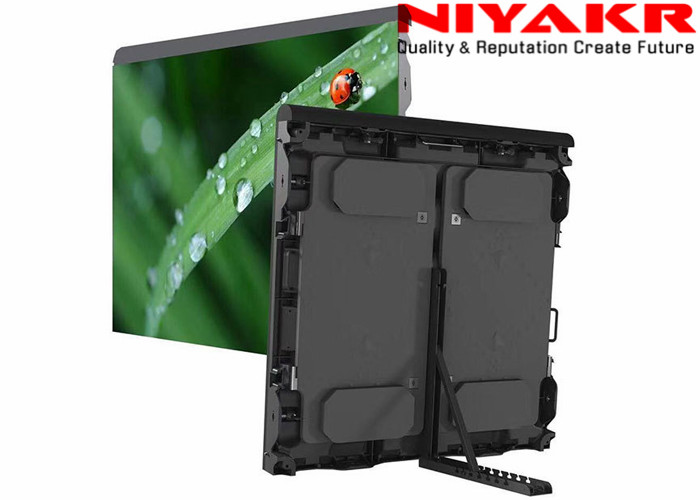

The Sport Perimeter LED Display is made up of many single LED cabinets. The LED cabinets are
connected by snap-on connectors. This design can be easily and
quickly disassembled for easy maintenance. There is a separate
supporting foot behind each box. The angle between the screen and
the ground can be adjusted through the supporting feet. The angle
range is adjustable from 65° to 90° to ensure the viewing angle of
the audience.
Second, security protection design
Considering that the player is fast and has a strong impact, the
player and The Sport Perimeter LED Display must be protected. Therefore, the soft mask can be used in the
design to effectively protect the screen and internal structure.
Secondly, the top of the LED screen is soft. Pad, in case the
player collides with the screen, both protect the player's body and
ensure that the display can play normally.
Third, high protection level
The Sport Perimeter LED Display needs to withstand the test of harsh environments such as sun
exposure, rain, high and low temperature changes, ultraviolet rays,
earthquake resistance, typhoon, etc. Therefore, the protection
level is at least IP65 or above, so the production process is
relatively complicated, and the outdoor led stadium fence screen is
guaranteed. Stability and security.
Application

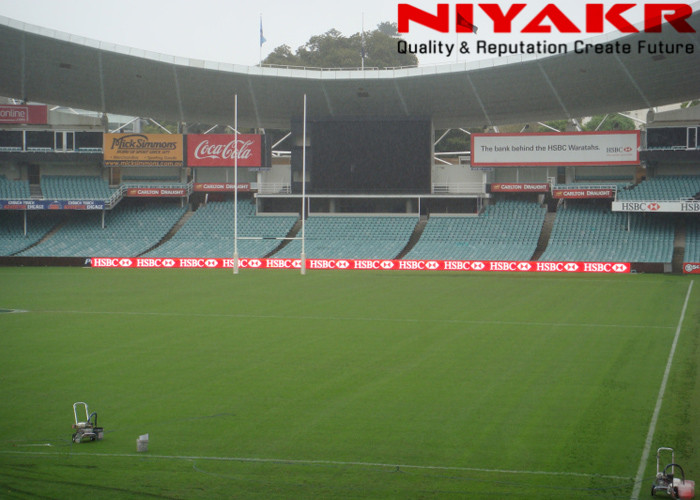

The Sport Perimeter LED Display is used for advertising around
sports venues such as football fields and basketball courts.
While enjoying the exciting games, the advertisement information is
cyclically played.
It is the perfect combination of modern sports and commercial
management.
The humanized design also protects the personal safety of athletes.
