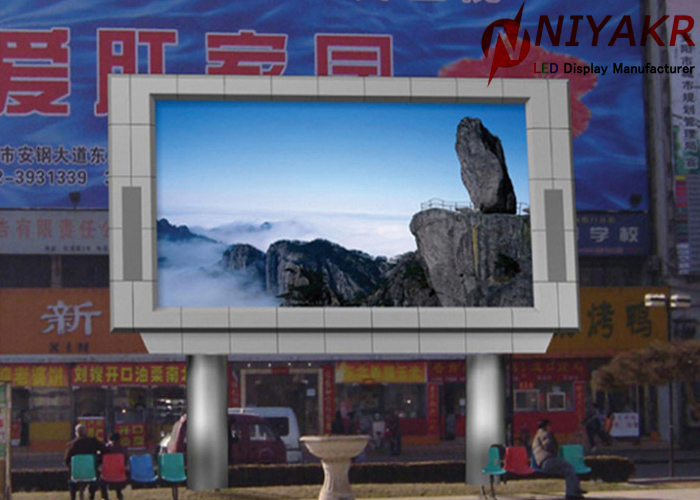

    Super Bright Full Colour LED Display P10 Outdoor LED Screen DIP 1R1G1B

    Ask Lasest Price
    Brand Name : NIYAKR
    Model Number : P10 DIP 1R1G1B
    Certification : CE,ROHS,EMC,UL,ISO
    Price : USD
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20000 Square Meters Per Month
    Delivery Time : 12-18 Working Days
    • Product Details
    • Company Profile

    Super Bright Full Colour LED Display P10 Outdoor LED Screen DIP 1R1G1B

    Super Bright Full Colour LED Display P10 Outdoor LED Screen DIP 1R1G1B


    Product features
    High brightness, low power consumption, long service life, stable performance, less maintenance
    Box size can be customized, flexible and changeable
    Installation is simple, easy to maintain, easy to use


    Application range
    Widely used in large venues, stadiums, banks, post and telecommunications, government agencies, terminal, docks, stations, securities market and other market transactions, medical systems, power, and the exhibition hall a need for publicity, advertising, information release guidance and other places.

    • Product Details
    • Parameters
    • Cases

    1, with a large angle of view, uniform color, low failure rate, easy to maintain, show the image soft, suitable for outdoor remote viewing.

    2, high brightness, high refresh, protection grade high, with a windproof, rainproof, waterproof function, can work in the sun, suitable for outdoor media advertising and other occasions.

    3, the screen installation can be divided into: column display, wall mounted display, fixed landing screen etc..

    4, screen body general equipment: video processor, splicing device, remote control system, optical fiber equipment.


    Specification

    DescriptionTechnical parameter
    Unit moduleModule size160*160mm
    Pixel pitch10mm
    Pixel density10000dots/m2
    Pixel configuration1R1G1B
    Led specification346 DIP
    Pixel resolutionW:16dots*H:16dots
    CabinetDimension960mm*960mm*150mm
    Quantities of module36pcs
    Power supply5pcs
    Thermal dischargeFan*2pcs
    Total weight55kg/m2
    Best viewing angle10-300m
    TemperatureStorage: -35°C~+85°C
    Working: -35°C~+85°C
    Thickness15cm can adjustable
    Remarks: cabinet size can changed, upon project need.
    PowerWorking voltageAC220V/110V±10%
    Average power consumption200-350W
    Max. Power consumption≤700W/sqm
    Current≤20mA(single LED)
    Control systemCPUPentium4 or above
    Operating systemWIN98/2000/NT/XP
    Control methodSynchronization
    Main technical parameterDriving deviceConstant Current driver IC
    Drive type1/4 duty
    Refresh frequency≥960Hz
    Grey scale/colors256 levels of each color(R/G/B)/16.7M color
    Brightness of white balanceMore than 7500cd/sqm
    Brightness adjustment256 levels of each color(R/G/B)by software
    Operating ambient humidity10%--95%
    Video signalPAL/NTSC
    Control systemDVI display card+full color controller card
    MTBF≥10,000hours
    Life span≥100,000hours
    FlatnessTolerance of interpixel ≤0.3mm
    Tolerance of modules clearance≤0.6mm
    Power switchAutomatic switch
    Display mode960*960
    Communication distance

    Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.

    Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM

    SoftwareLED studio
