Pixel Pitch 8mm Curved LED Screen Video Wall 1R1G1B Three Year
Warranty

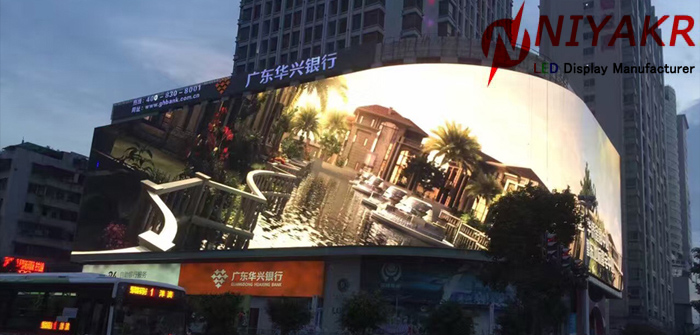

P8 outdoor curved led video wall Features
Arc Curve Screen Cut Edge, make sure no gap on any angle
1. SMD3-in-1 technology are used for indoor LED display.
2. Wide view angle: 140 in horizonal and 140 in vertical
3. Special design and advanced SMT technology improves the heat
dissipation
4. With high refresh rate controller, guarantee that no scan line
when taking photos.
5. Slim and lightweight design.
6. Easy for assembling and connecting with fast lock and the
connector added.
7. High color uniformity and clear image can bring you a vivid
audio visual effect.
8. Items: P2.5,P3,P3.75,P4,P5,P6,P8 etc.
9. Inner or outter curve and any angle screen are ok.
P8 outdoor curved led video wall Applications
Suit for advertisement, stage, stadium, exhibition, TV-Show,
mansion video wall, shopping mall, banks, schools, bus station,
airport, gym, market, factories, monitoring centers, hospitals,
bars etc.
1. Video display for advertisement
2. Live broadcast for news, sport, concert…
3. Stage background
4. Information display for time, schedule, text
5. Dynamic display for logo, text, video
P8 outdoor curved led video wall Installation
User's manual, instruction video, professional CAD installation
drawing, and other needed engineering drawings will be provided. We
only offer the drawings, and you can show the drawing to your local
steel structure factory, and they will weld it for you at site. On
one hand, it's not cost-effective for you to ship the steel
structure from China. On the other hand, we are impossible to offer
you exact steel structure without welding at site. Engineering
training or installation assistance support at customer’s place is
available, but a round-trip ticket, local accommodation of
technician, staff labor cost(USD80/day if exceeding one week), cost
of visa, and other expenses during the whole trip should be borne
by the customer.
P8 outdoor curved led video wall Specifications
| LED Chip Brand | Red: Opto / Epistar; Green & Yellow: Silan |
| Wave Length (nm) | R: 625nm; G: 525nm; B: 470nm |
| Pixel Configuration | 1R1G1B |
Control System
| The Software | LED Studio |
| System Supported | Win 98 / 2000 / 2003 / XP / WIN7 |
| Control Mode | Real Time Control (Synchronous) |
| Display Capability | Flash, Video, Graphic, Text |
| Signal Supported | RGB, VGA, DVI, etc. |
Module & Cabinet
| Pixels | 8 mm |
| Physics Pixel Density | 15,625 Pixel/m² |
| Module Dimensions (W x H) | 256mmX128mm |
| Physics Pixel / Module | 32 x 16 = 512 |
| Cabinet Dimension(WxHxT) | 1024mm X 1024mm X 190mm |
| Physics Pixel / Cabinet | 128 x 128 = 16384 |
| Cabinet Weight | 48 kg |
| Cabinet Material | Steel Cabinet / Aluminum Cabinet |
Screen
| Brightness | >6500cd/m² |
| Viewing Distance | >8m |
| Power Consumption / Screen | MAX 1200 w/m² ; Average 260 w/m² ; |
| Drive Mode | 1/4 Scan |
| Refresh Rate | 300-3000 HZ adjustable |
| Frame Rate | 60HZ |
| Display Flatness | 0.5mm |
| Maintenance | Back maintenance, replace the module |
| Led Life Span | 100, 000 hours |
| Supply Voltage | AC220V/50HZ, ± 10%; AC110V/60HZ, ± 10% |
| Operating Temperature | -50º C~+50º C |
| Operating Humidity | 10%-90% |
| Storage Temperature | -50º C~+60º C |
| Operating Humidity | 10%-90% |
| Storage Temperature | -50º C~+60º C |
| Viewing Angle | Horizontal: 120°, Vertical: 120° |
| Grey Scale | Red, green, blue each 16k |
| Display Colors | 4096 Billion |
| IP Rating | Front IP65 |
| Aging Time in Factory | More than 72 hours constantly |
